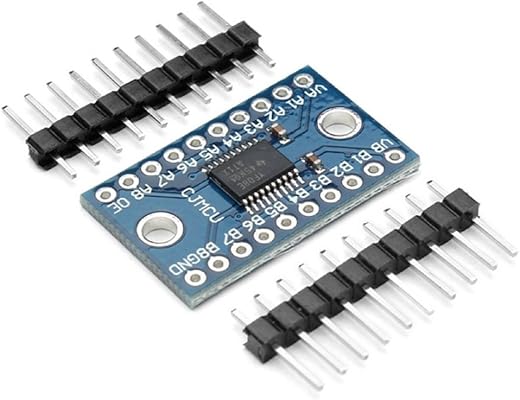

xcluma Cjmcu Txs0108E Highspeed Full Duplex 8Way Level Conversion Module

• 8 channels bidirectional voltage translation between different logic level. translate between Ax and Bx automatically
• VCCA Voltage level: 1.2V-3.6V VCCB Voltage level: 1.65v-5.5v Dimension Approx: 21mm x 15mm
• How to Use: In the case of translating between 3.3V and 5V system: VCCA connects to 3.3V power supply VCCB connects to 5V power supply
• GND connects to power negative pole respectively. the two power supply should be common-grounded with each other When Ax has TTL 3.3V input. Bx will get TTL 5V output When Bx has TTL 5V input. Ax will get TTL 3.3V output NO direction control required

,
